Waterproof Wall Mounted Rental LED Screen Module Pantallas 30-120 HZ For Music Tour
Quick details:
1. Lightweight,Ultra-Slim Design,360 degree foldable
2. The Whole structure is plastice housing+PCBA, so as to lower the weight;85% weight saving than
tranditional Die Cast Aluminum Cabinet.
3. Easy to maintain, High resolution, Good contract, Less Weight, easy to install.

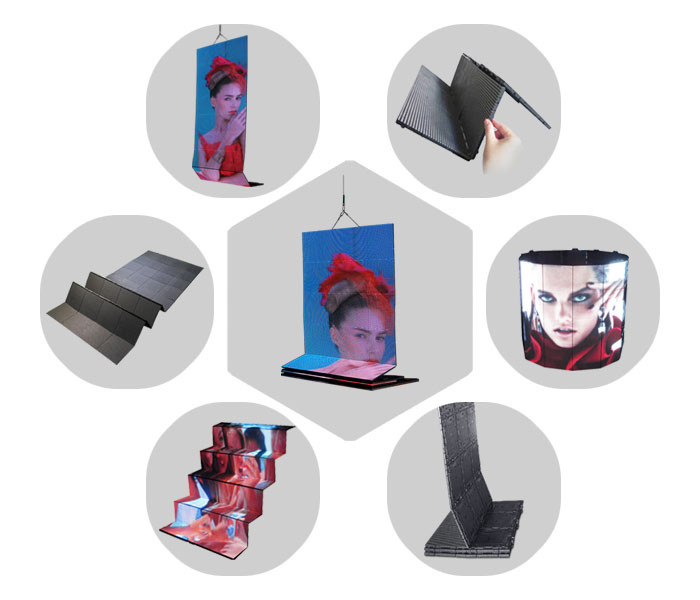

Foldable rental LED display Features :
1. Foldable LED module display is a new invention that breaks through various bottle-necks compared with traditional LED display, it deserves the invention patent and Utility model patent internationally.
2. Foldable LED module display P12 is composed of many small modules 192mm*192mm which are connected together by steel wire,the display can be folded with 360 degree between each module
3. Fissionable design: separated LED screen, receiving card and power can be composed and disassembled randomly.
4. Ultra slim and light weight: the maximum thickness is 9mm, which will save 90% shipping space, slim structure and instant installation will save 90% time and cost.
5. 64-256 level electronic current gain adjustment: completely solve the mosaic problem if the brightness is low, perfect low brightness performance
6. high grey level: 16*16*16 grey level; high refresh rate: maximum 20k Hz: 1/2, 1/4, 1/8 scan mode is available, 256level brightness adjustment.
7. Various application: just change the mask of the display, so it is not only hung on the truss, but also can be attached on the ceiling or even laid on the floor as dance floor screen, these operation can be implement by customers.
8. Irregular shape is available such as cylinder, arch, round shape and so on only provided support frame.
9. super low power consumption, energy saving.
10. the size is customized, the maximum single panel size can be 3 meters (H) * 5 meters ( W), many single panel can be connected together to make as larger screen as you want, just need several minute to finish the whole system installation.
11. Simplified structure design which is convenient to maintain and repair.
12. Multi-function: Special for the occasion of pageant, vision show, rental, hotel and all kinds of night event, and much suitable for mobile show and advertisement like truck loading display.
Applications:
With Foldable, Flexible, HD, Slim, Light weight, Fast installation and Lowest cost design,For Indoor and Outdoor rental, Mobile stage such as music tour, road show, event, exhibition and Advertisement
Technical Specification
| Model No. | Slim 12 |
| Pixel Pitch | 12mm |
| Module Size | 192x192mm |
| Module Resolution(pixels) | 16*16 |
| Panel Size | 768mm×3072mm, be customized as per customer's request. Max can be 768*12228mm |
| Panel Resolution(pixels) | 64*256 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 6499 |
| Brightness(cd/m2) | 1000 |
| Best Viewing Distance(m) | >12m |
| Max.Power Consumption(W/m2) | 150 |
| Waterproof Level | Indoor IP43/Indoor IP54 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥8000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Why onumen?
Case:1700m² (F-P12)
Save transportation and
warehousing cost |  |
| Save installation time |  |
| Save labor cost |  |
| Space-efficient packaging |  |
80% weight saving;
for pitch 6mm LED curtain, it is just 11 kgs per square meter
80% transport cost saving;
11 square meters ( 5 pieces of 0.768x 3.072m) of pitch 6 mm LED curtain can be put in one flight case, the flight case dimension with wheel is 80 cm length x 80 cm width x 80 cm height ( totally 0.8 CBM), you can transport and move the flight case easily
80% installation time saving;
( just need to hang the LED curtain on the wall or on the truss, without any frame or cabinet)
Whatever solution you need, whatever LED screen size you desire, whatever configuration you
want - our goal is a perfect viewing experience for your audience - A brilliant display and
experience. You can rent our LED giant screens in various configurations in almost unlimited size.
It is the most cost efficient product.
